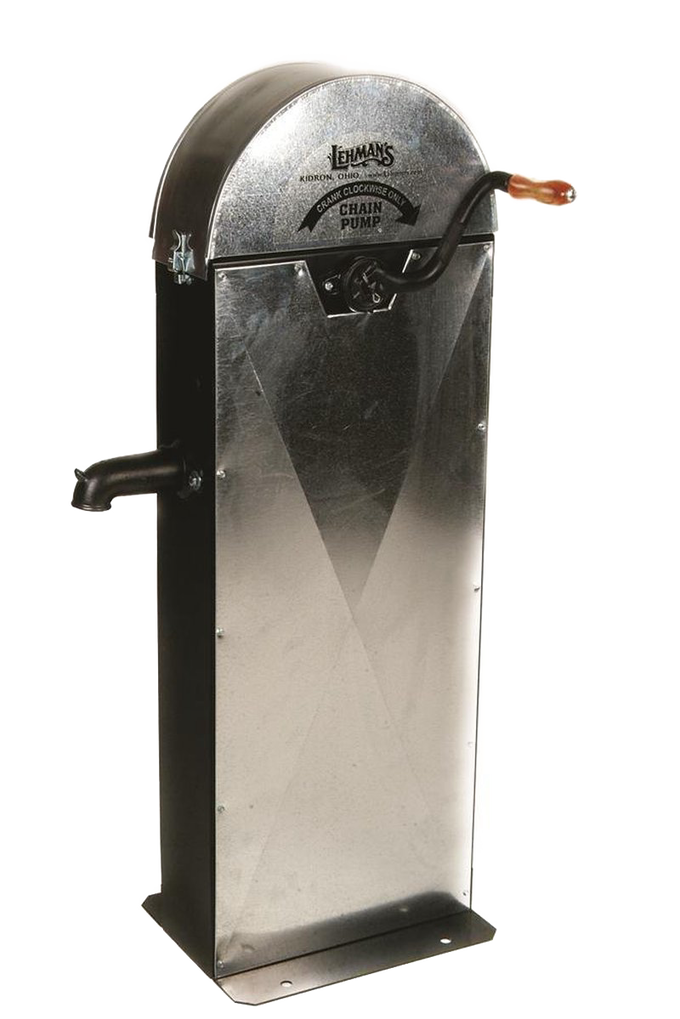

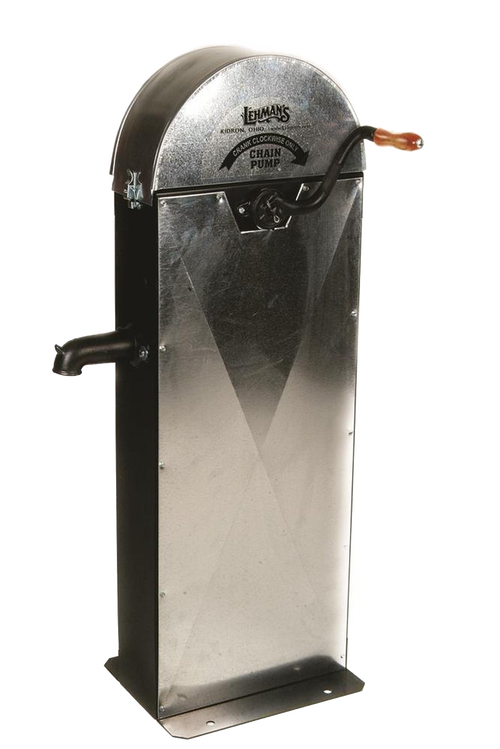

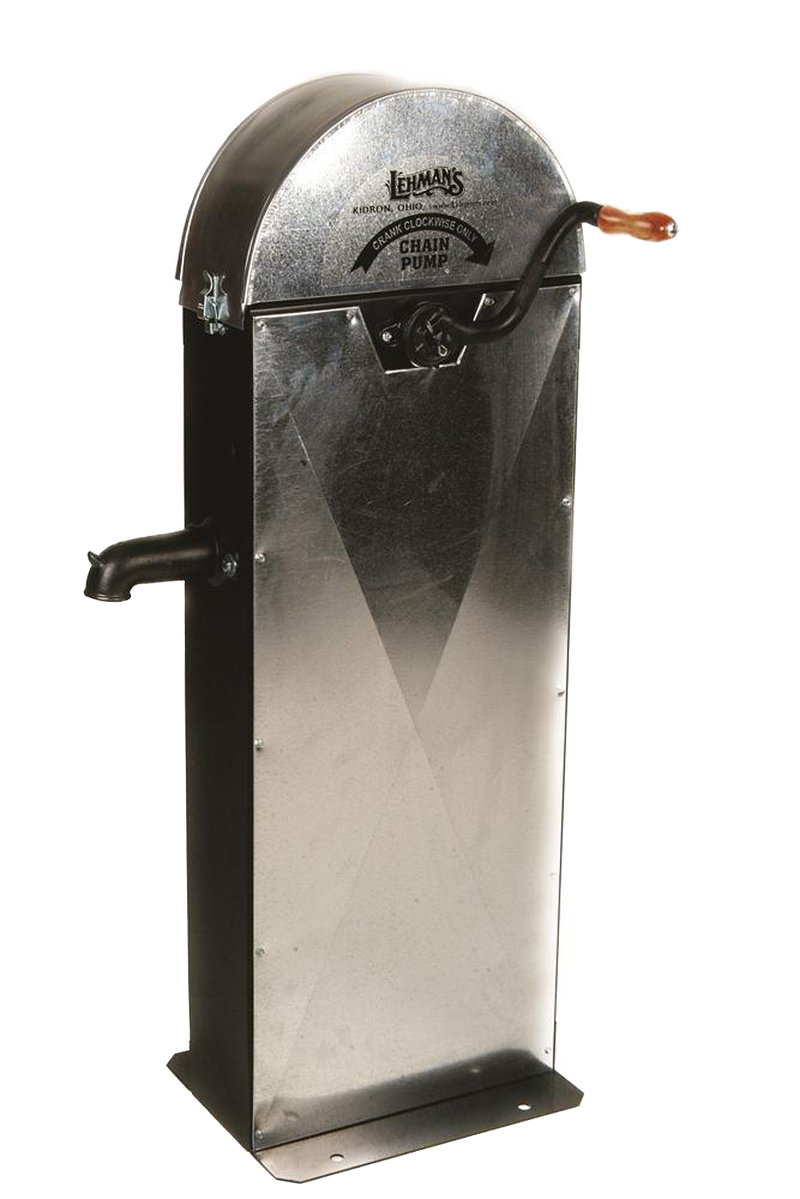

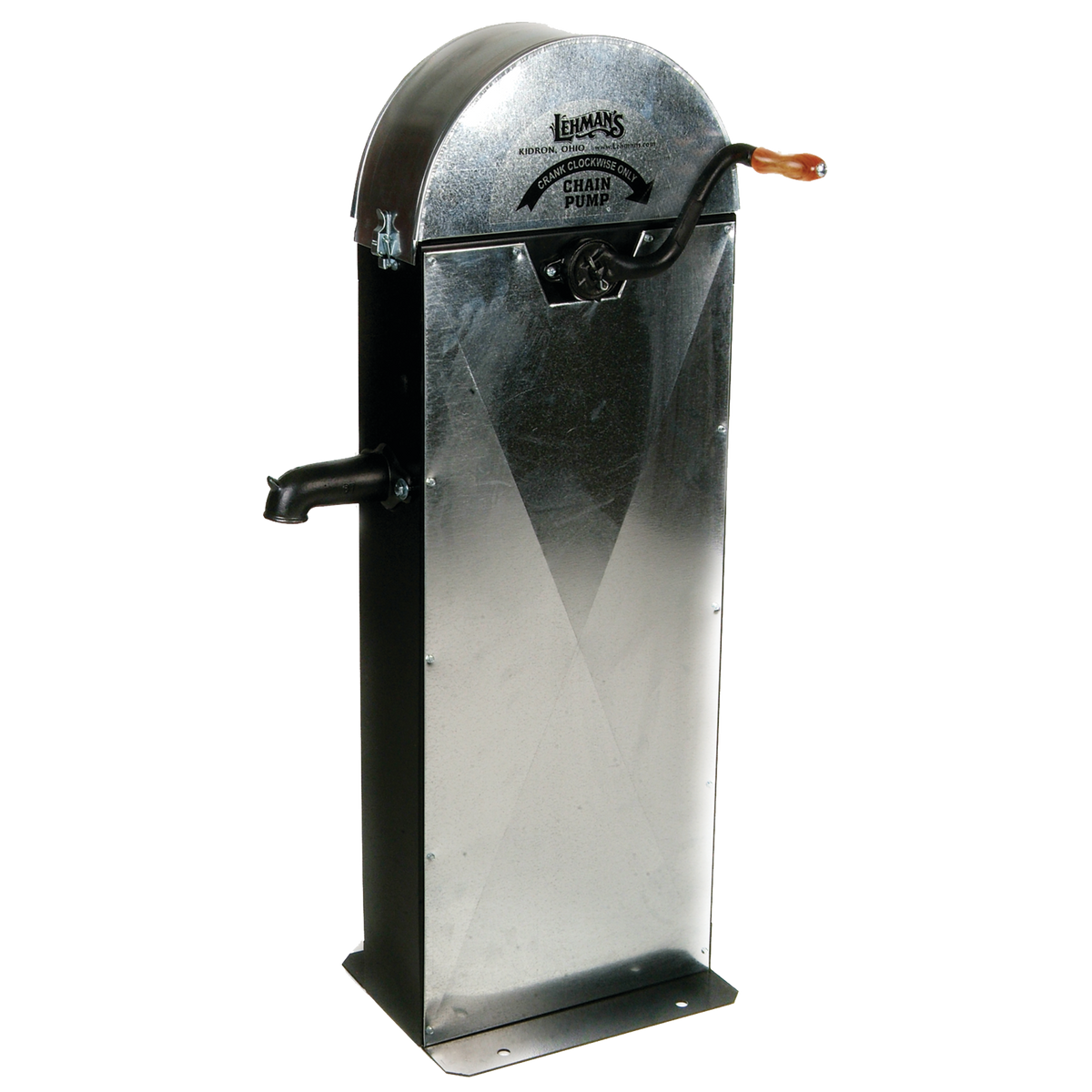

Cincinnati Gem Chain Pump

SKU: 20301000

$549.00
$549.00 $0.00 USD

Efficient hand-crank chain pump for drawing water from cisterns, ponds, and more.

Hurry, only 1 item left in stock

Ships Same Day by 5pm EST
Request A Quote

Description

Just turn the crank for continuous flow. This effective and efficient pump combines a time-proven method with modern materials. Perfect for drawing water from a cistern, tank, pond, lakes or rivers.

Note: Chain pumps do NOT come with chain and buckets. You need to determine how much chain you will need with your application.

Product Highlights
  • Installation instructions included
  • You supply drop-pipe; chain and buckets sold separately
  • Assembled by Lehman's from USA components and a few imported parts

Details

Individual rubber "buckets" mounted on a chain (Chain and Buckets sold separately) and powered by crank, lift water up through a heavy plastic tube (not included). Raise water straight up from as much as 30', from cisterns, tanks and even ponds, lakes or rivers - fast enough to fill a 5-gallon bucket in under a minute.

  • Lift water up to 30 feet

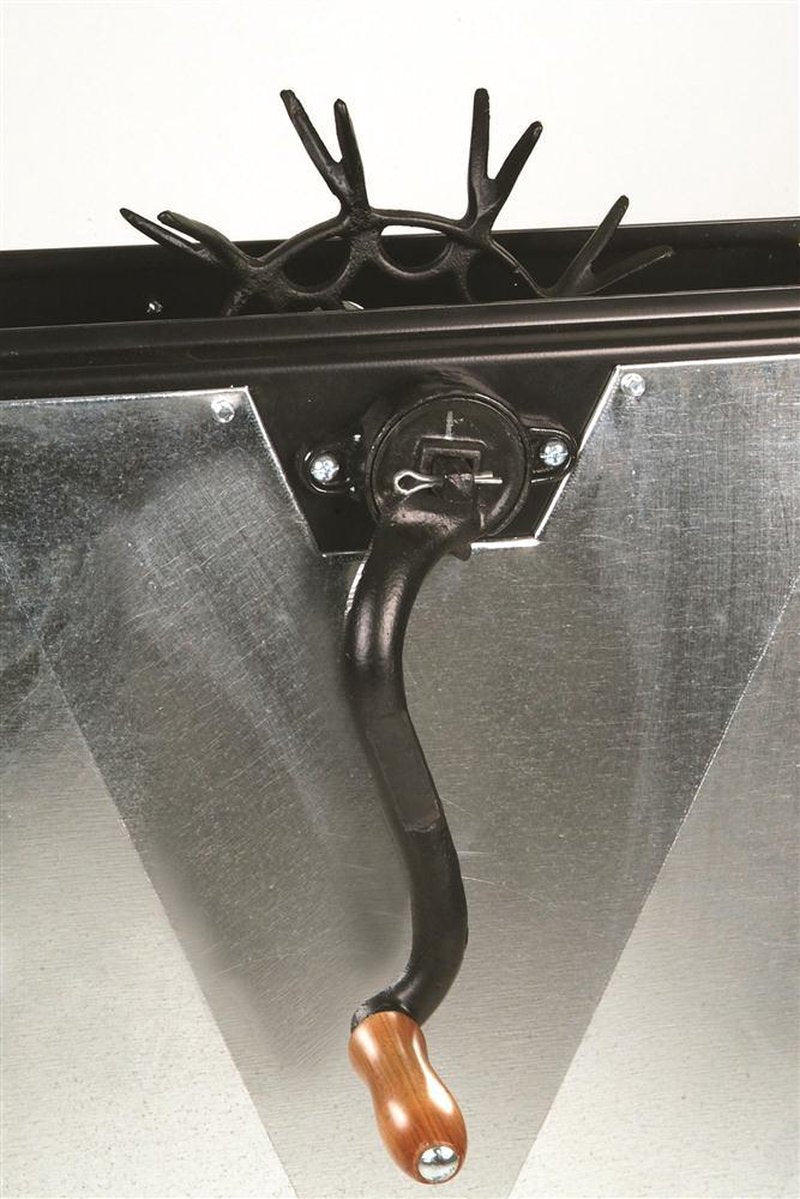

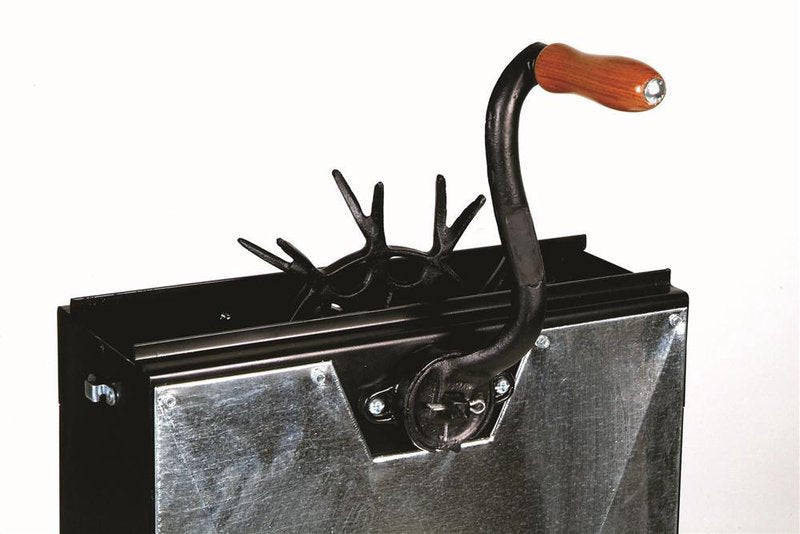

  • Cast iron drive and spout
  • Galvanized housing and tough plastic pipe and reservoir with a Powder-coated steel frame
  • Minimum opening of 3" x 13" in mounting platform is needed
  • For drop pipe use 1-1/2" plastic pipe (widely available, you supply as much as you need)
  • 44" Tall, Mounting Flange 12-1/4" x 15-1/4" Head weight 38 lbs
  • Drop Pipe and Chain/Buckets sold separately
